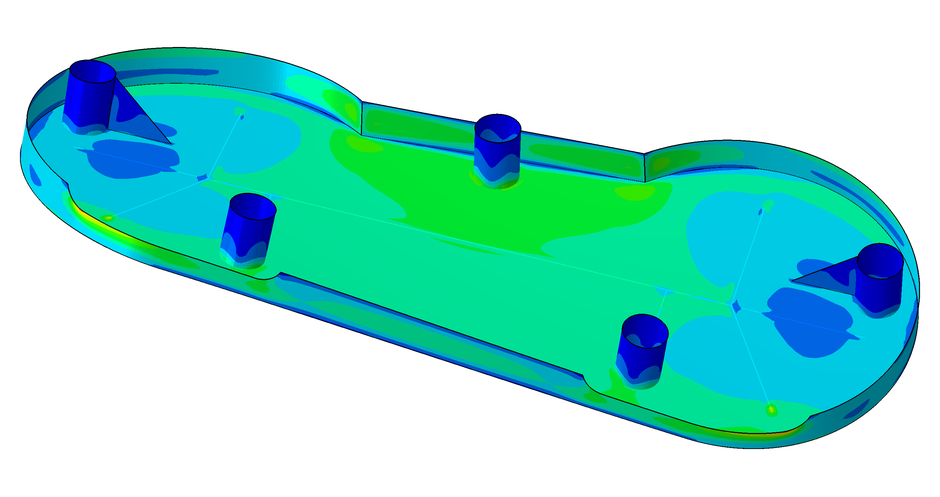

Abaqus Tutorial: Lower Shell of a Game Controller

A thin-walled plastic part modelled with shells and beams in Abaqus/CAE (practical L05). The tutorial covers shell offsets, beam ribs, joining shells to solids, loading through a reference point with a distributing coupling, and symmetric and antisymmetric half models.

Tutorial Parts

Part 1

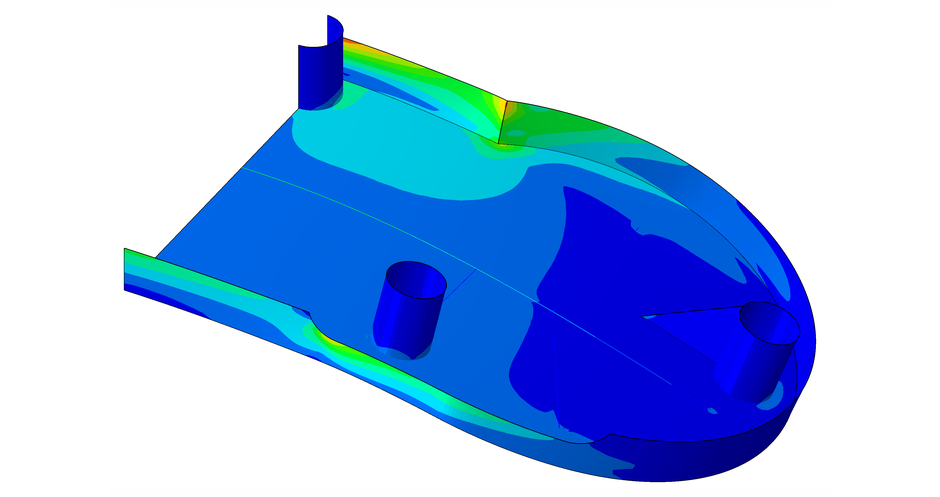

Lower Shell of a Game Controller

S4R shells with offsets, B31 rib beams, the shell-to-solid tie trap, a three-point bend through a coupled RP, and four load cases.

Offline version

All parts as HTML pages in one zip file, to read without internet or to upload to Moodle.

Download the offline version (.zip)
